Feature:
1. Whole machine is welded with seamless steel structure,the stability is excellent, not easy to be deformed.
2. The Spindle equipment is the first brand of the world, 1.5KW Italy HSD air cooling spindle.
3. The machine adopts gantry movement,it can process any kinds of materials freely.
4. Three axes adopt imported high precision Taiwan square orbit;X ,Y and Z axis adopts taiwan ball screw,
with high precision and long life time.
5. Three axes are dustproof.It makes sure the steady working performance of the machine for long-term using.
6. Well compatibility:CAD/CAM designing software e.g.
Type3/Artcam/Castmate/Wentai etc.
7. Has the function of forecasting process time.
8. High precision,the curving and linear speeds are consistent.Adopting execellent parts makes the fault
rate to be the lowest one.
Technical Parameter:
|

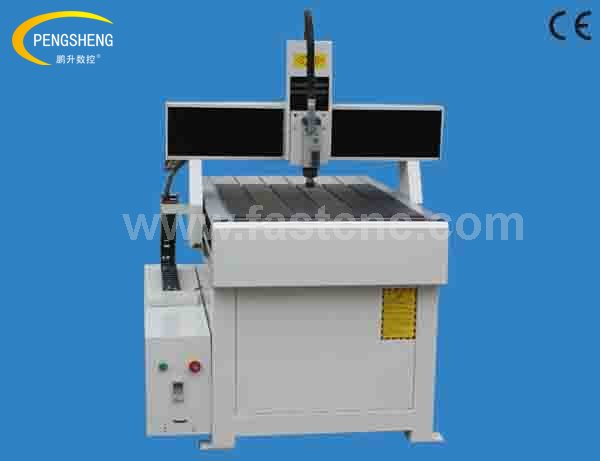

Model |
PC-6090F |
|
X.Y working area |
600mm*900mm |
|
Z working area |
80mm |
|
Table size |
700mm*1100mm |
|
Resolution |
0.01mm |
|
X,Y structure |
Taiwan ball screw |
|
Z structure |
Taiwan ball screw |
|
Max speed |
10m/min |
|
Spindle power |
1.5kw |
|
Spindle rotating speed |
0-18000r/min |
|
Cooling mode |
Air cooling |
|
Working voltage |
AC220V/50/60 Hz ,2PH |
|
Drive Motor |
Stepper |
|
Command |
G code*.u00*.mmg*plt |
|
Operating system |
NC Studio |
|
Diameter of cutter |
3.175--8 |
|
Work-holding |
By clamp |
|
Net weight |
300kg |
Applicable industries:
Wood processing:processing of various furniture such as door,window,cabinet,craft wood door,screen and so on.
Advertisement:engraving and cutting various labels and number plate.
Art craft:engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood,aluminum board,plastic,density board,wave board,PVC,acrylic,crystal,light marble and other nonmetal
materals and light metal materials.
