CONFORMITY WITH EUROPEAN

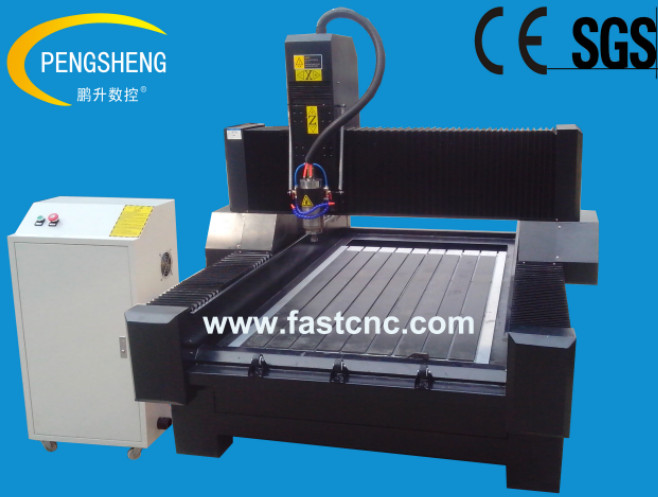

Stone CNC Router PC-1318SS





Feature:

1.    Lathe bed is welded with thick square tube and is processed by high

temperature tempering treatment,good rigidity and heavy loading.

T-slot structure,it can be loaded 6 tons.

2.    Three axes adopt imported high precision Taiwan square orbit;X and

Y axes adopt rack and pinion transmission,fast working,high efficiency

and low cost;Z axis adopts imported ball screw,with high precision and long

life time.

3.    Well compatibility:CAD/CAM designing software e.g.

Type3/Artcam/Castmate/Wentai etc.

4.    It has the function of re-carving after break point and power failure

5.   It has the function of forecasting process time.

6.    Adopting advanced DSP system with USB connection,operated with

 the handle,convenient operation.Our engaber can completely work off-line

and do not take any computer resources.

7.    Auto oiling system

8.    Adopt imported linear square orbit,highprecision,heavy loading and

long lifetime.

9.    The machine has water tank and automatic water cooling system.

10. Waterproof and dustproof design for the machine protects the

transmission parts from broken.

Technical Parameter:

Model

PC-1318SS

It can be customized

X.Y working area(mm)

1300*1800

Z working area

300mm

Resolution

0.01mm

X,Y structure

Rack and pinion transmission

Z structure

Imported ball screw

Max speed

30m/min

Spindle power

4.5kw(constant power rate spindle)

Spindle rotating speed

0-24000r/min

Cooling mode

Water cooling

Working voltage

AC380V/50/60 Hz ,3PH

Drive Motor

Stepper

Command

G code*.u00*.mmg*plt

Operating system

DSP(with separate operation cabinet)

Interface

USB

Diameter of cutter

3.175--12.7

Applicable Industries:

Stone industry :engraving various granite,bluestone,marble,gritstone,soapston and

etc.

Metal processing industry.



Applicable Materials:

All kinds of stone,such as marble,granite,artificial stone,metal materials.



Working video: http://youtu.be/7XGBFRe07HI
