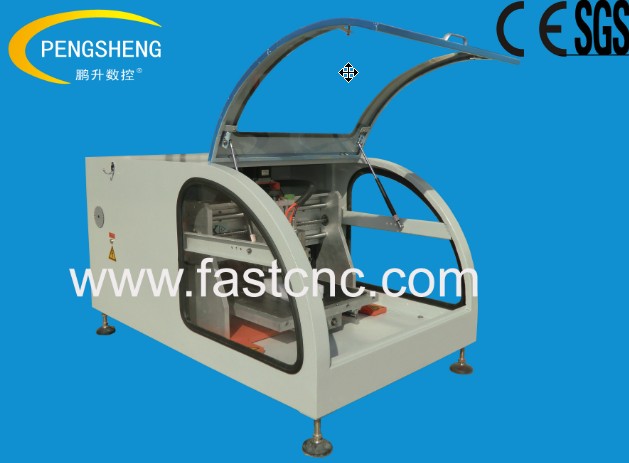

DSP control mini cnc router PC-4040-C




Feature:

1.   Whole cast by aluminum.

2.   The Spindle equipment is the first brand of the world, 800W China

    domestic made water cooling spindle.

3.   Three axes adopt imported ball screw and cirle orbit,stable working,high

     precision and long life time.

4.   X axis is dustproof.It makes sure the steady working performance of the

      machine for long-term using.

5.   Well compatibility:CAD/CAM designing software e.g.

Type3/Artcam/Castmate/Wentai etc.

6.    It has the function of forecasting process time.

7.   The most advantage of the machine is the gantry is fixed,but the working

     table can move,it can be ensure the high accuracy.

8.DSP control system is convenience and high efficiency.

9.The cover is dust proof and can ensure safety working.

Technical Parameter:

Model

PC-4040-C

X.Y working area

400mm*400mm

Z working area

60mm

Resolution

0.01mm

X,Y,Z structure

Taiwan ball screw

Max speed

9m/min

Spindle power

800W

Spindle rotating speed

0-24000r/min

Cooling mode

Water cooling

Working voltage

AC220V/50/60 Hz ,2PH

Drive Motor

Stepper

Command

G code*.u00*.mmg*plt

Operating system

DSP

Diameter of cutter

3.175-8

Work-holding

By clamp

Applicable industries:

This machine can be used for Stone, Brass and AL Processing, mold

manufacturing, wood processing, craft manufacturing, indoor decoration

cutting, sign and mark manufacturing, acrylic board processing, as well

as stamp and PCB drilling.

Applicable industries:

Wood,plastic,PVC,PCB board,MDF,Artificial Stone,Acrylic,etc
