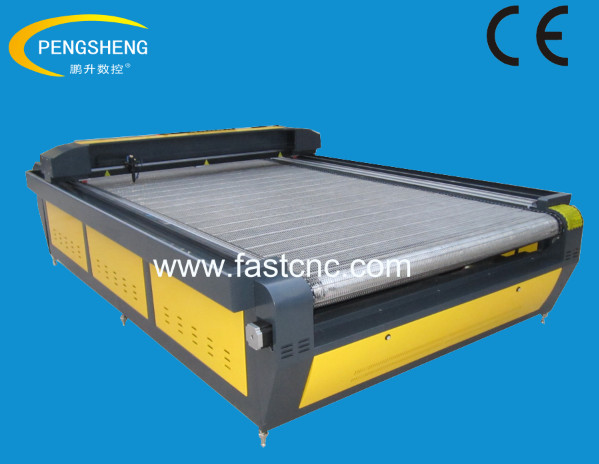

large format auto feeding CO2 laser cutting machine

 large format auto feeding CO2 laser cutting machine



With the development of large format cutting industry,auto-feed laser cutting machine

be developed,this machine can cut materials with high speed and high efficiency.

Feature:
1.Adopt the international advanced DSP control technology, it is the pioneer to fast

continuously curving-cut and shortcut processing pathway optimizing function,accordingly

increase greatly the decency.
2.It automatically equalizes the diminishing of light during the whole operating to ensure

the same cutting effect ion different area.
3.High-speed cutting control software and buffer function in high-speed movement can

improve production efficiency.
4.The up-to date software provides the direct output of original pictures; completely fit the

graph foams such as CAD, CAM of CAD, and CorelDraw software, to meet the practical

design requirement of the end users.
5.The advanced colors and the toms of the cutting can realize the one-time output

completely or partially.
6.It uses USB port to transmit data, equipped with large-capacity memory, improving

working efficiency greatly.

Technical Parameter:

Model

PC-1325LA

PC-1525LA

PC-1530LA

PC-2030LA

PC-2040LA

Table Sizemm

1300*2500

1500*2500

1500*3000

2000*3000

2000*4000

Laser Power

60W/80W/100W/130W/150W/170W

Laser Type

CO2 sealed laser tube, water-cooled, 10.6um

Cooling type

Water-cooled

Engraving Scanning Speed

0-6000mm/min

Max Moving Speed

30000mm/min

Cutting speed

0-1000mm/min

Laser Output Control

1-100%software setting

Smallest letters

English 1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Precision

0.01mm

Supported File Format

DAT,PLT,BMP,DXF,AI,etc.

Compatible Software

TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD

Operating humidity

Temperature:0-45,Humidity:5%-95%(without condensed water)

Optional parts

Up&down table,auto focus system,rotary device,

ball scew transmission,water chiller.

Applicable Industries:
Advertising industry:Double-colored board engraving,Organic glass engraving and cutting,

Label engraving,Crystal cup engraving,Warranty signed engraving.

Carved gifts and crafts industry:Wood,Bamboo Ivory ,Bone,Leather,Marble
Packing and printing industry:Rubbery board,Plastic board,Double-layered board, Model cutting

board.Leather clothing industry: Complex letters and pattern engraving,Cutting on hypoderm,

Synthetic leather,Man-made leather,Cloth Architectural model industry: ABS board cutting,

Model cutting Production totem industry:

Appliance signs,Anti-fake commodities making.
Applicable Materials:
Wood,Bamboo,jade,marble,acrylic,crystal,leather,plastic,paper,rubber,ceramic,glass and other

non-metal materials.
