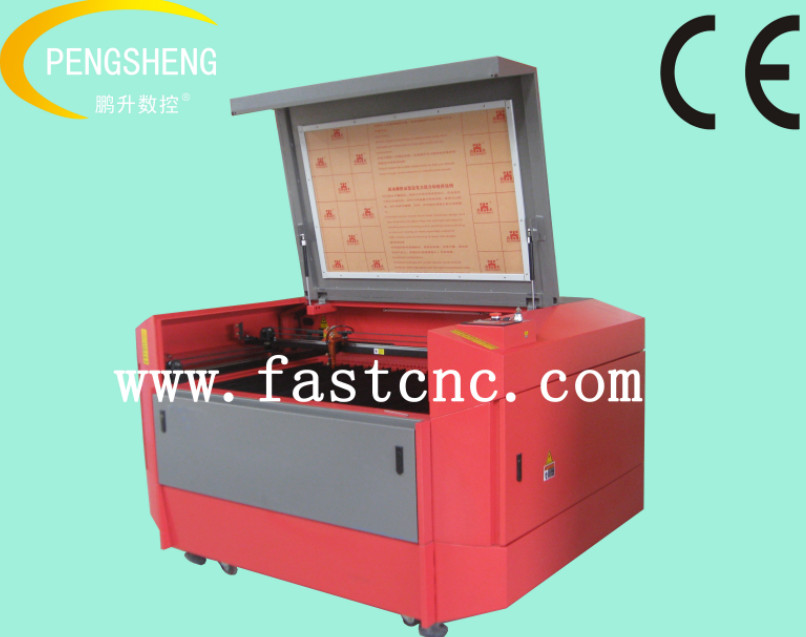

laser cutting machine with rotary device




Feature:

PC-LR series laser engraving machine can process cylinder materials.
1.Adopt the international advanced DSP control technology, it is the pioneer to fast

continuously curving-cut and shortcut processing pathway optimizing function,

accordinglyincrease greatly the decency.
 2.It automatically equalizes the diminishing of light during the whole operating to ensure

the same cutting effect ion different area.
 3.High-speed cutting control software and buffer function in high-speed movement can

improve production efficiency.
4.The up-to-date software provides the direct output of original pictures; completely fit

the graph foams such as CAD, CAM of CAD, and CorelDraw software, to meet the practical

design requirement of the end users.
 5.The advanced colors and the toms of the cutting can realize the one-time output completely

or partially.
6.It uses USB port to transmit data, equipped with large-capacity memory, improving working

efficiency greatly.

Technical Parameter:

Model

PC-6040LR

PC-9060LR

PC-1290LR

PC-1410LR

PC-1610LR

Table Sizemm

600*400

900*600

1200*900

1400*1000

1600*1000

Rotary device

Four-wheel rotary device/three-jaw rotary device

Laser Power

60W/80W/100W/130W

Laser Type

CO2 sealed laser tube, water-cooled, 10.6um

Cooling type

Water-cooled

Engraving Scanning Speed

0-6000mm/min

Max Moving Speed

30000mm/min

Cutting speed

0-1000mm/min

Laser Output Control

1-100%software setting

Smallest Character

Engraving

English 1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Precision

0.01mm

Supported File Format

DAT,PLT,BMP,DXF,AI,etc.

Compatible Software

TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD

Operating humidity

Temperature:0-45,Humidity:5%-95%(without condensed water)

Optional parts

Up&down table,auto focus system,

ball scew transmission,water chiller.



Applicable Industries:
Advertising industry:Double-colored board engraving,Organic glass engraving and cutting,

Label engraving,Crystal cup engraving,Warranty signed engraving
  Carved gifts and crafts industry:Wood,Bamboo Ivory ,Bone,Leather,Marble
 Packing and printing industry:Rubbery board,Plastic board,Double-layered board, Model cutting board
  Leather clothing industry: Complex letters and pattern engraving,Cutting on hypoderm,Synthetic leather,

Man-made leather,Cloth
 Architectural model industry: ABS board cutting,Model cutting
 Production totem industry: Appliance signs,Anti-fake commodities making
Applicable Materials:
Wood,Bamboo,jade,marble,acrylic,crystal,leather,plastic,paper,rubber,ceramic,glass and other

non-metal materials.
