Feature:
1.Adopt the international advanced DSP control technology, it is the pioneer to
fast continuously curving-cut and shortcut processing pathway optimizing function,
accordingly increase greatly the decency.
2.It automatically equalizes the diminishing of light during the whole operating to
ensure the same cutting effect ion different area.
3.High-speed cutting control software and buffer function in high-speed movement
can improve production efficiency.
4.The up-to-date software provides the direct output of original pictures; completely
fit the graph foams such as CAD, CAM of CAD, and CorelDraw software, to meet
the practical design requirement of the end users.
5.The advanced colors and the toms of the cutting can realize the one-time output
completely or partially.
6.It uses USB port to transmit data, equipped with large-capacity memory, improving
working efficiency greatly.
Technical Parameter:
|

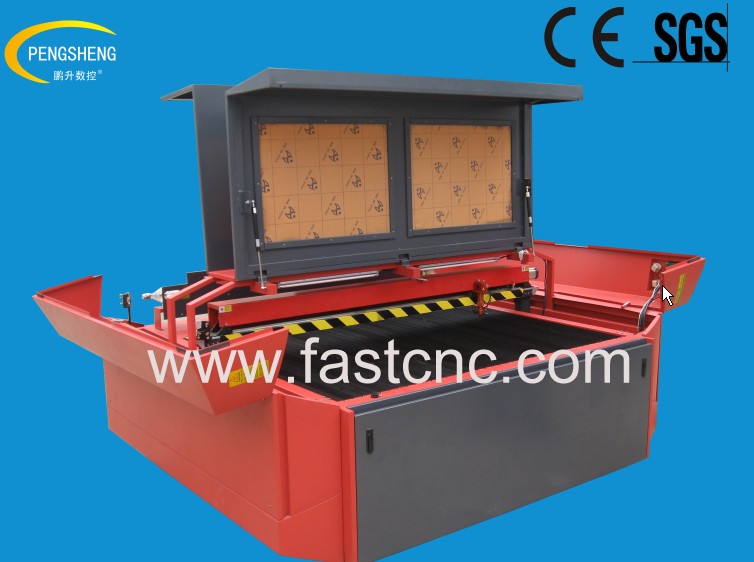

Model |
PC-1610LD |
|
Table Size（mm） |
1600*1000 |
|
Laser Power |
60W/80W/100W/130W/150W*2 |
|
Laser Type |
CO2 sealed laser tube, water-cooled, 10.6um |
|
Cooling type |
Water-cooled |
|
Engraving Scanning Speed |
0-6000mm/min |
|
Max Moving Speed |
30000mm/min |
|
Cutting speed |
0-1000mm/min |
|
Laser Output Control |
1-100%software setting |
|
Smallest Character Engraving |
English 1.0mm*1.0mm |
|
Highest Scanning Precision |
2500DPI |
|
Locating Precision |
0.01mm |
|
Supported File Format |
DAT,PLT,BMP,DXF,AI,etc. |
|
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP, AUTOCAD |
|
Operating humidity |
Temperature:0-45,Humidity:5%-95%(without condensed water) |
|
Optional parts |
Up&down table,auto focus system,rotary device,ball scew transmission,water chiller. |
Applicable Industries:
Advertising industry:Double-colored board engraving,Organic glass engraving and
cutting,Label engraving,Crystal cup engraving,Warranty signed engraving
Carved gifts and crafts industry:Wood,Bamboo Ivory ,Bone,Leather,Marble
Packing and printing industry:Rubbery board,Plastic board,Double-layered board,
Model cutting board.
Leather clothing industry: Complex letters and pattern engraving,Cutting on hypoderm,
Synthetic leather,Man-made leather,Cloth Architectural model industry: ABS board
cutting,Model cutting Production totem industry: Appliance signs,Anti-fake commodities
making.
Applicable Materials:
Wood,Bamboo,jade,marble,acrylic,crystal,leather,plastic,paper,rubber,ceramic,glass
and other non-metal materials.
